Candy Suction And Delivery Hose

Candy Suction And Delivery Hose
Details:
Hose wall: food-grade polyether polyurethane
Reinforcement: Reinforced with PU coated steel wire
Stainless steel wire and anti-static products are available for selection
Send Inquiry
Description
Send Inquiry

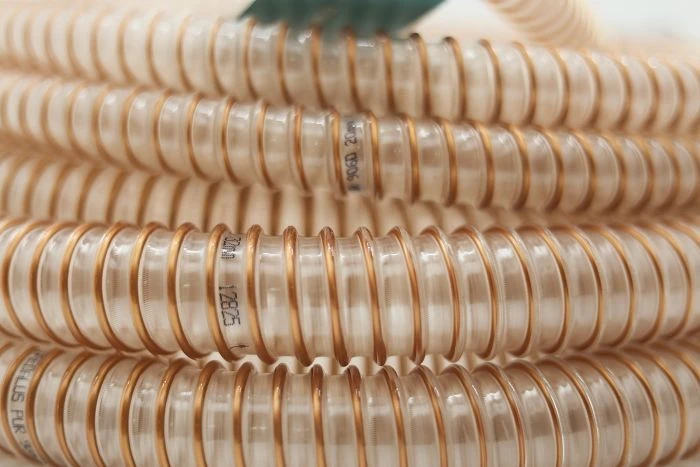

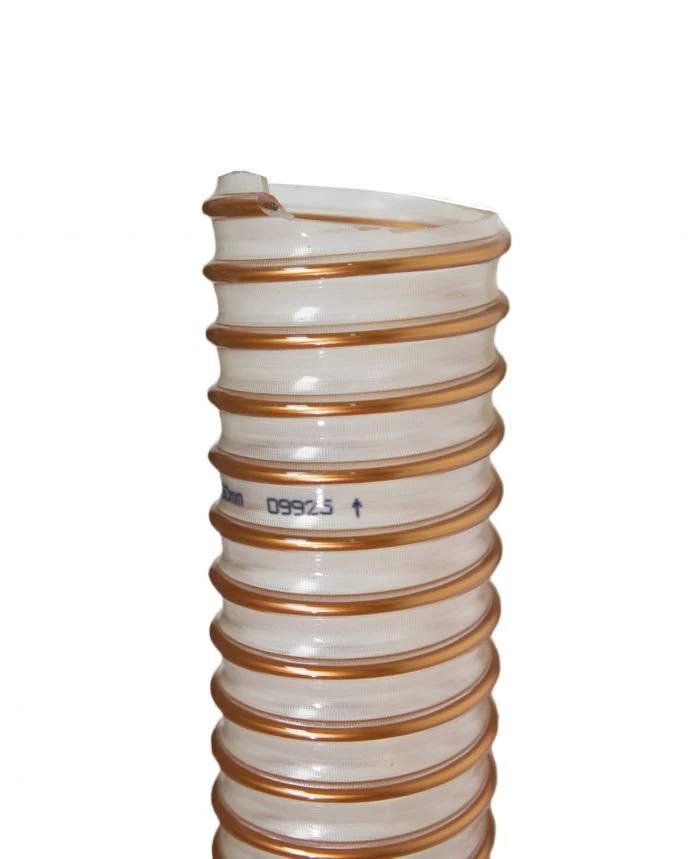

Candy suction and delivery hose



906SF 1.5mm Wall Thickness Food-grade Polyether PU Hose, With Smooth Inner Wall



Materials

  • Hose wall: food-grade polyether polyurethane
  • Reinforcement: Reinforced with PU coated steel wire
  • Stainless steel wire and anti-static products are available for selection



Characteristic

  • Food grade
  • Smooth bore
  • abrasion resistant/resistance
  • Good circulation
  • Good mechanical properties
  • Odorless and tasteless
  • Resistant to microorganisms and hydrolysis

Applications

  • Food industry
  • Conveyance of food powder materials
  • Conveyance of granular food materials

Structure

  • Colour: transparent
  • Temperature: -40/+100℃, +125℃ short time
  • Connection: Right turn spiral,bridge clamp 991R



Part Number Internal
Diameter		 Wall
Thickness (Tolerance)		 Weight Bending
Radius		 Working
Pressure		 Vacuum Coil
Length
mm mm (+/- 0.1) kg/m mm bar bar m
906SF-016-20 16 1.3 0.22 18 3.12 0.90 20
906SF-018-20 18 1.3 0.23 21 3.01 0.90 20
906SF-020-20 20 1.3 0.24 25 2.98 0.90 20
906SF-022-20 22 1.4 0.25 30 3.40 0.90 20
906SF-025-20 25 1.4 0.28 32 3.29 0.90 20
906SF-030-20 30 1.5 0.30 39 2.98 0.88 20
906SF-032-20 32 1.5 0.44 42 2.93 0.87 20
906SF-035-20 35 1.5 0.48 45 2.85 0.86 20
906SF-038-20 38 1.5 0.52 48 2.77 0.86 20
906SF-040-20 40 1.5 0.54 50 2.75 0.86 20
906SF-045-20 45 1.5 0.60 55 2.46 0.85 20
906SF-051-20 51 1.5 0.66 60 2.21 0.84 20
906SF-055-20 55 1.5 0.72 65 2.03 0.79 20
906SF-060-20 60 1.5 0.78 70 1.85 0.73 20
906SF-065-20 65 1.5 0.84 75 1.72 0.68 20
906SF-070-20 70 1.5 0.98 97 1.60 0.60 20
906SF-076-20 76 1.5 1.05 103 1.49 0.55 20
906SF-080-20 80 1.5 1.11 109 1.40 0.50 20
906SF-090-20 90 1.5 1.25 121 1.17 0.38 20
906SF-102-10 102 1.5 1.51 136 1.10 0.35 10
906SF-110-10 110 1.5 1.63 145 1.03 0.32 10
906SF-115-10 115 1.5 1.68 151 0.98 0.30 10
906SF-120-10 120 1.5 1.77 157 0.95 0.28 10
906SF-127-10 127 1.5 1.84 163 0.91 0.27 10
906SF-130-10 130 1.5 1.92 170 0.85 0.24 10
906SF-140-10 140 1.5 2.03 181 0.81 0.22 10
906SF-152-10 152 1.5 2.44 196 0.74 0.18 10
906SF-160-10 160 1.5 2.56 205 0.70 0.17 10
906SF-170-10 170 1.5 2.72 217 0.67 0.15 10
906SF-175-10 175 1.5 2.79 223 0.65 0.14 10
906SF-180-10 180 1.5 2.87 229 0.63 0.14 10
906SF-200-10 200 1.5 3.12 256 0.57 0.12 10
906SF-228-10 228 1.5 3.50 286 0.50 0.10 10
906SF-250-10 250 1.5 3.78 305 0.46 0.08 10
906SF-254-10 254 1.5 3.88 316 0.46 0.08 10
906SF-275-10 275 1.5 4.26 346 0.41 0.07 10
906SF-280-10 280 1.5 4.33 352 0.41 0.07 10
906SF-300-5 300 1.5 5.16 376 0.38 0.06 5
