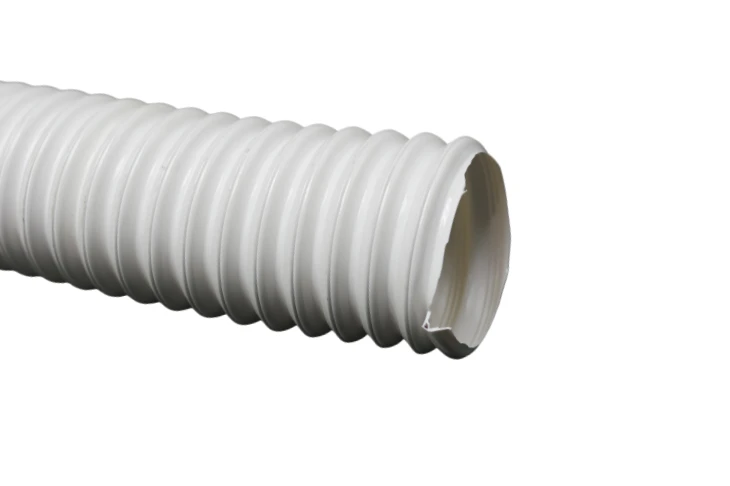

| 904W Compressible 0.6mm Wall Thickness White Colour PU Steel Wire Reinforced Hose | ||||||||
| Product images | Application | Characteristic | Structure | |||||
| ► Suction of wood chips and crushed material particles | ► Soft and easy to bend | ► Colour: white | ||||||
| ► Extraction of dust and sawdust | ► Stretch flexibly | ► Temperature: -40/+90 ° C | ||||||
| ► Vacuum suction and exhaust | ► Compressible (compression ratio 1:5) | +125℃ short time | ||||||
| ►Ventilation and dust collection | ► Good abrasion resistance | ► Connection method: | ||||||
| ►Suitable for dynamic parts of machinery | ► Ozone resistant, aging resistant, mineral oil resistant | right turn spiral | ||||||
| ► Hose wall: Polyester polyurethane | ► Free from phthalates, halogen free | bridge clamp 991R | ||||||
| ► Reinforcement: Copper plated steel wire reinforcement | ||||||||
| Part Number | Internal Diameter (Tolerance) | External Diameter (Tolerance) | Wall Thickness |
Weight | Vacuum | Bending Radius |
Roll Length |
Volume |
| mm (+/- 0.5) | mm (+/- 2) | mm | g/m | bar | mm | m | m3 | |
| 904W-025-10 | 25 | 33 | 0.40 | 140 | 0.20 | 30 | 10 | 0.004 |
| 904W-032-10 | 32 | 40 | 0.40 | 170 | 0.20 | 30 | 10 | 0.006 |
| 904W-038-10 | 38 | 46 | 0.40 | 175 | 0.20 | 30 | 10 | 0.005 |
| 904W-040-10 | 40 | 48 | 0.40 | 185 | 0.20 | 32 | 10 | 0.005 |
| 904W-051-10 | 51 | 61 | 0.40 | 230 | 0.20 | 40 | 10 | 0.007 |
| 904W-060-10 | 60 | 70 | 0.40 | 265 | 0.17 | 50 | 10 | 0.01 |
| 904W-065-10 | 65 | 75 | 0.40 | 285 | 0.17 | 56 | 10 | 0.011 |
| 904W-070-10 | 70 | 80 | 0.40 | 375 | 0.17 | 60 | 10 | 0.013 |
| 904W-076-10 | 76 | 86 | 0.40 | 405 | 0.17 | 65 | 10 | 0.015 |
| 904W-080-10 | 80 | 90 | 0.40 | 420 | 0.16 | 65 | 10 | 0.016 |
| 904W-090-10 | 90 | 100 | 0.40 | 470 | 0.16 | 75 | 10 | 0.022 |
| 904W-102-10 | 102 | 113 | 0.50 | 530 | 0.13 | 85 | 10 | 0.028 |
| 904W-110-10 | 110 | 121 | 0.50 | 570 | 0.12 | 90 | 10 | 0.032 |
| 904W-120-10 | 120 | 131 | 0.50 | 620 | 0.10 | 100 | 10 | 0.037 |
| 904W-127-10 | 127 | 138 | 0.50 | 760 | 0.10 | 105 | 10 | 0.045 |
| 904W-130-10 | 130 | 141 | 0.50 | 775 | 0.08 | 105 | 10 | 0.047 |
| 904W-140-10 | 140 | 151 | 0.50 | 840 | 0.08 | 115 | 10 | 0.054 |
| 904W-152-10 | 152 | 163 | 0.60 | 900 | 0.08 | 125 | 10 | 0.063 |
| 904W-160-10 | 160 | 171 | 0.60 | 945 | 0.07 | 130 | 10 | 0.069 |
| 904W-180-10 | 180 | 191 | 0.60 | 1,210 | 0.05 | 150 | 10 | 0.087 |
| 904W-203-10 | 203 | 214 | 0.60 | 1,360 | 0.04 | 165 | 10 | 0.109 |
| 904W-220-10 | 220 | 231 | 0.60 | 1,525 | 0.04 | 185 | 10 | 0.142 |
| 904W-254-10 | 254 | 265 | 0.60 | 1,845 | 0.04 | 210 | 10 | 0.174 |
| 904W-279-10 | 279 | 290 | 0.60 | 2,025 | 0.040 | 230 | 10 | 0.209 |
| 904W-305-10 | 305 | 317 | 0.60 | 2,205 | 0.030 | 250 | 10 | 0.248 |
